Description

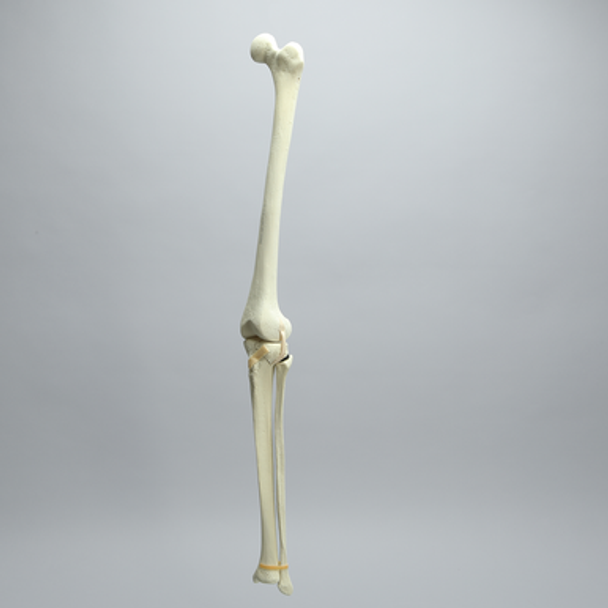

Femur, tibia, and fibula articulated with stretch tube LCL and MCL. Includes tibial plateau fracture of the lateral condyle with displacement. Fracture reattached with latex bands under tension. Femur and tibia with cancellous inner material, and fibula made of solid foam. Femur with a canal diameter of 15 mm and an overall length of 42 cm. Tibia with a canal diameter of 12 mm and an overall length of 38 cm.
Foam cortical shell models are made of a rigid foam shell with inner cancellous material. These models cut and drill easier than the plastic cortical shell models. Over the years Sawbones has created thousands of model types made from a variety of materials and densities. Contact Us to create a custom product or solution that's ideal for your specific needs.
Specifications
SKU |
1147-13 |
Anatomy |
Knee |
Model Type |
Single Fracture |
Material |
Foam Cortical Shell |
Fracture Location |
Proximal |
AO Fx Class |
41C1 |
Orientation |
Left |
Size |
Medium |
Country of Manufacture |
United States |
