RediStik Neonatal ECMO Cannulation Trainer

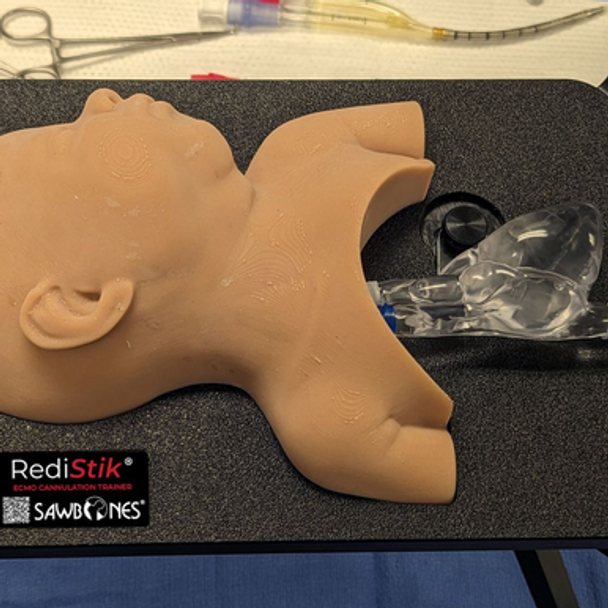

RediStik^® versatile, anatomically accurate simulation training model enables surgical and perfusion teams to perform of all steps for Neonatal Extracorporeal Membrane Oxygenation (ECMO) neck cut down, cannulation, connection to ECMO circuit and de-cannulation in a neonatal patient. Progress from novice to advanced with just one model. Model features right side of the neck with palpable landmarks (mandible, clavicle), realistic tissue layers (skin, fat, sternocleidomastoid muscle), correct neurovascular positioning (internal jugular vein, carotid artery, vagal nerve), and transparent heart.

CLICK FOR WRITTEN SET-UP INSTRUCTIONS AND CANNULATION TIPS

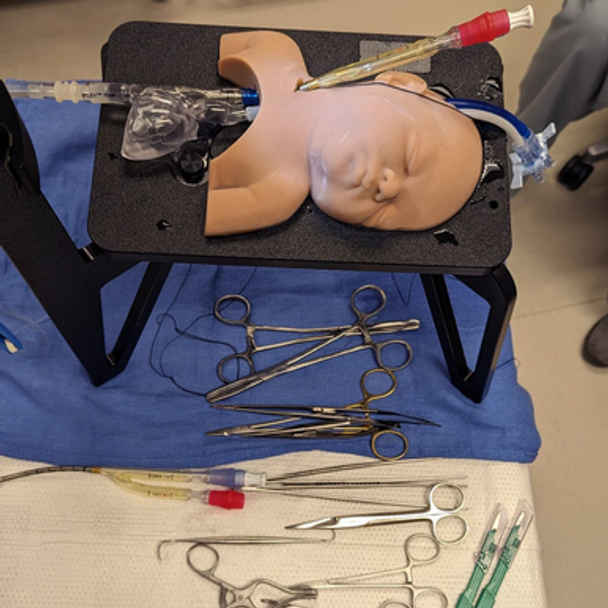

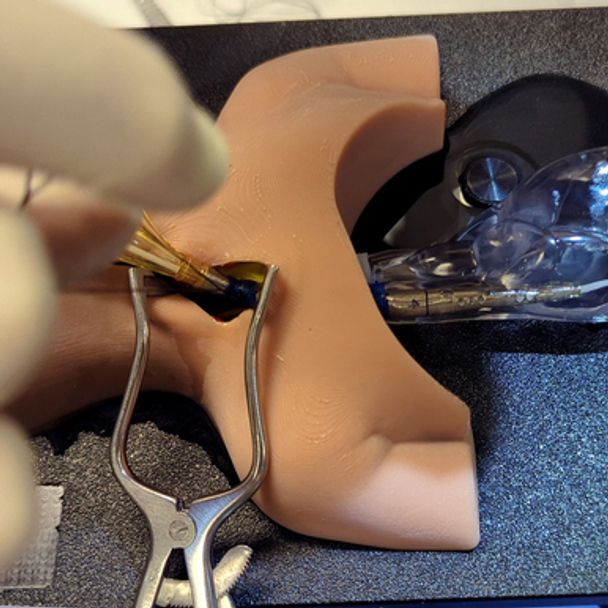

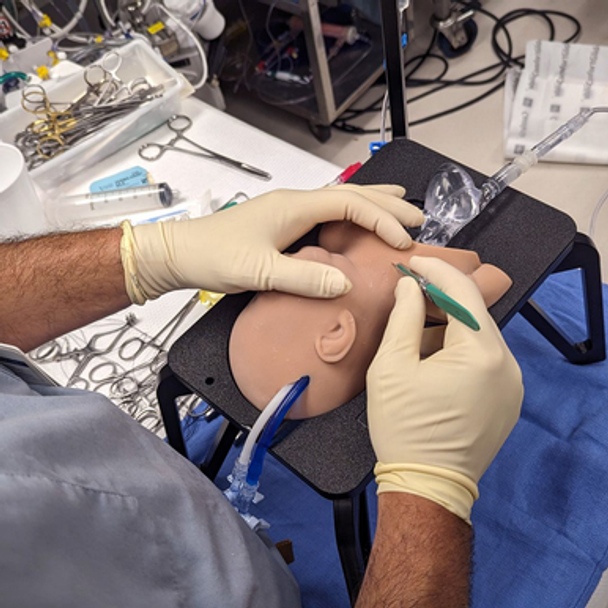

Palpate neck landmarks. Cut, spread, encircle or laterally retract tissue layers to expose vessels. Neurovascular positioning, color and feel allows for accurate exposure, cutting, applying traction sutures/tourniquet to control the vessels, and cannula insertion. Transparent heart provides visualization during insertion of the cannula and provides closed loop system to connect to the ECMO circuit. An elevated liter bag of saline creates pressure in the system to allow for realistic “bleed back”, so a pulsating pump is not necessary.

Model accommodates 8FR - 9Fr arterial, 13Fr - 15Fr venous cannulas.

Progress from novice to advanced in ECMO neck cut down, cannulation, connection to ECMO circuit, and de-cannulation.

RediStik^® Neonatal ECMO Cannulation Trainer Includes:

• 1 x Duffle bag
• 1 x Heart/fittings (Spare set of fittings for carotid/IJV + 6 extra stopcocks) (replacement part #1847-6)

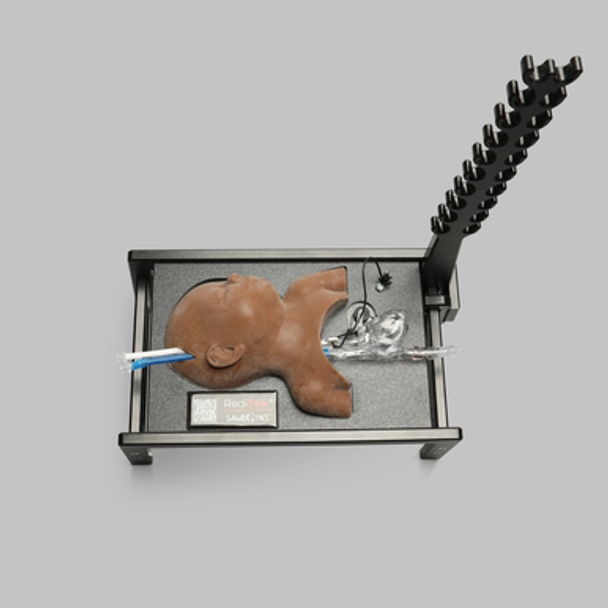

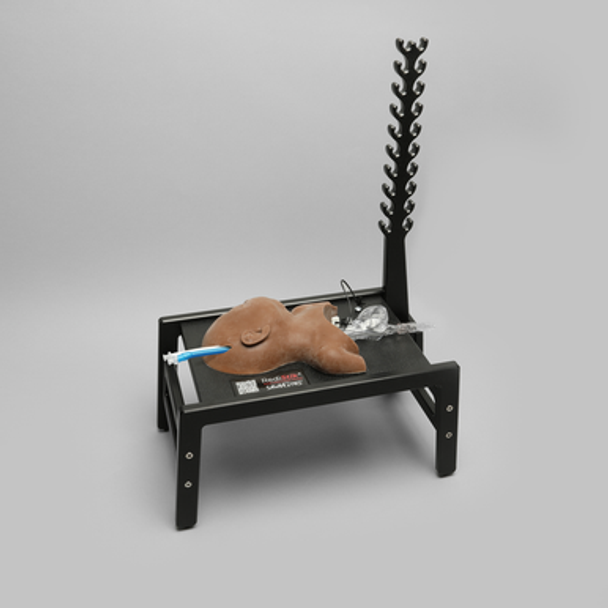

• 1 x Securement base for heart/neck (with 8" lift and IV bag holder*)
• 1 x Hard protector case for heart
• 4 x Necks, each with carotid, IJV, and vagus nerve
  • 2 x Neck, light tone (replacement part #1847)
  • 2 x Neck, dark tone (replacement part #1847-50)
• Extra set of vessels:
  • 1 x Internal jugular vein (replacement part #1847-2)
  • 1 x Carotid artery (replacement part #1847-1)
• 1 x Color tabs
• 1 x Small liquid soap
• 1 x Color Instructions
  (Head/neck and vessels are for one-time use. New vessels can be placed in a previously cut neck. The heart, base for neck/heart, hard protector case for heart, and duffle bag are reusable.)

Model is not ultrasound compatible.
*IV bag not included.

Read more about Revolutionizing Medical Education Technology with Texas Children's Hospital^® or visit Texas Children's Hospital's^® RediStik^® page.

Additional innovation and educational resource contact Michael Pickett, MSN, APRN, CPNP
