Description

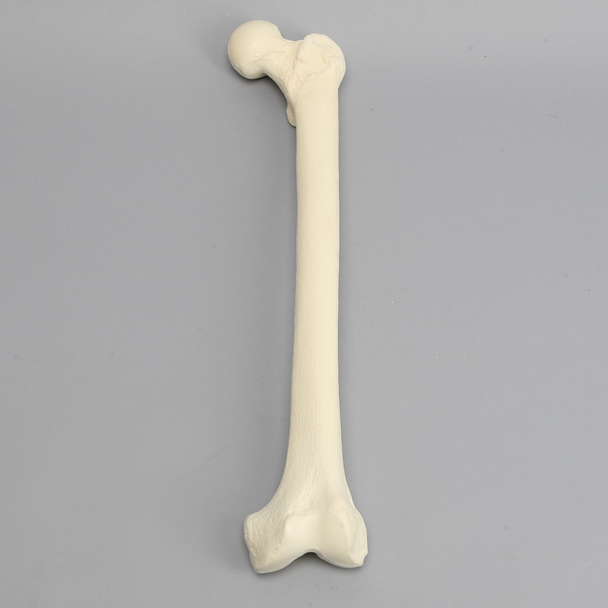

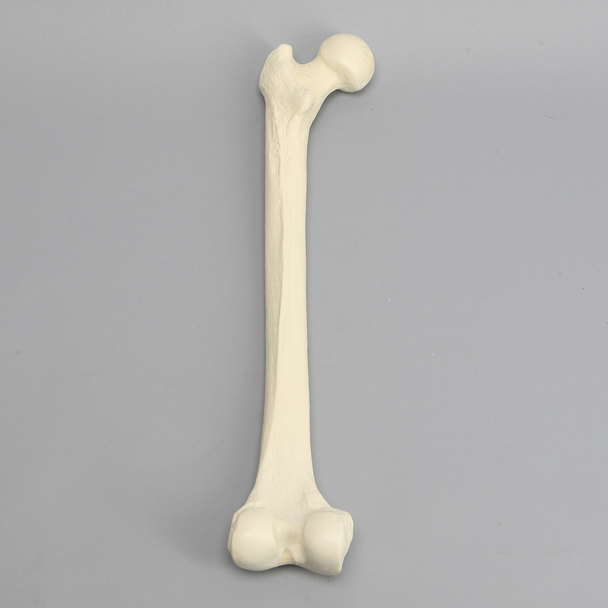

The E3 Biomechanics Classroom Grade Large Left Femur with Foam Cortical Shell (1130-211) is a Sawbones® whole-bone femur model used for fracture fixation and whole-bone testing labs in the University of Delaware E3 Biomechanics curriculum.
It matches the Sawbones large left femur (1130) anatomically and functionally. The rigid foam cortical shell cuts and drills more easily than plastic cortical models, which suits hands-on student labs.
Classroom Grade: Classroom grade models may have cosmetic imperfections, but their anatomy, dimensions and mechanical performance match the standard 1130. They offer a cost-effective option for student labs where every model will be drilled, plated and tested.
Test Frame Ready: Mounts to the Vernier® Go Direct® Materials Test Frame (GDX-MTF) with the E3 Biomechanics Proximal Femur Fixture (1741-200-1).
Key Features:
- Large left femur
- Rigid foam cortical shell with cancellous inner material
- Overall length 47 cm
- Canal diameter 16 mm
- Anatomically and functionally identical to Sawbones® 1130
- Cosmetic imperfections possible
- Made in the USA
Labs Supported:
- Fracture plate design and installation
- Drilling and screw placement
- Whole-bone mechanical testing
Free Curriculum: The E3 Biomechanics lab modules are available at no cost from the University of Delaware.
Specifications
SKU |
1130-211 |
Anatomy |
Femur |
Model Type |
Typical Anatomy |
Material |
Foam Cortical Shell |
Canal Size |
16 |
Orientation |
Left |
Size |
Large |
Country of Manufacture |
United States |
Overall Dimensions |
19.5 x 4 x 2.75 |
