Jugular & Carotid Module for ECMO, Clear Tone

Description
Videos
Specifications
Warranty
Documents

Description

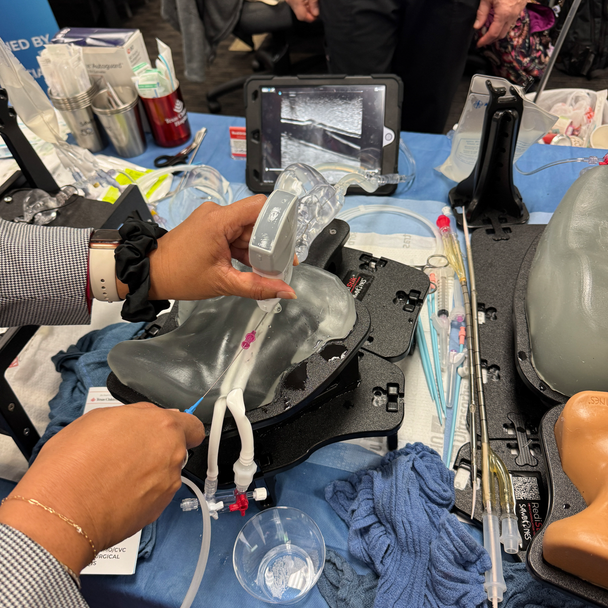

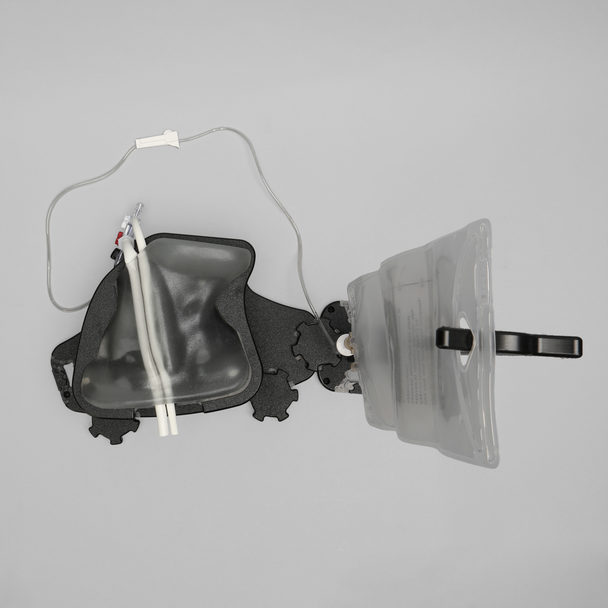

The Ultrasound Internal Jugular and Carotid Cannulation Module, Clear Tone (500-301-30) is a central line training neck module used to place hemodialysis (HD) catheters, central venous catheters (CVC), and ECMO catheters via the Seldinger technique, a wire-guided approach performed under ultrasound, sized to the anatomy of a late adolescent or small adult. Part of the RediStik^® line of cannulation models, its clear construction lets users see the internal jugular vein and carotid artery directly, making it ideal for instructor-led demonstration and introductory ultrasound-guided access training. The jugular vein accepts cannulas up to 24 French and the carotid artery up to 16 French; without need for dilation or incision. Vessels are rated for 5 to 10 cannulations at maximum size depending on technique, with the surrounding tissue good for 20 or more uses; both vessels are easily replaced once worn.

This module doubles as a standalone trainer for vessel location, needle insertion, HD catheterization, and short catheter access, or it can be connected to other modules for full suite ECMO training; a quick-turn connector lets it lock directly onto the Ultrasound Right Heart Chamber and Valve Visualization Module (500-201-30/32) or the Clear Heart Visualization Module (501-301), supporting single- or dual-site VA ECMO configurations and giving users the choice between ultrasound-guided or purely visual training tracks. The model can be primed with an included 1,000 mL bag of blood solution and a height adjustable IV tower, so instructors can control flashback and back pressure at the moment of venipuncture.

Once primed, users can perform the full Seldinger technique from start to finish: track a needle tip under ultrasound down to the jugular vein, puncture and confirm flashback, thread a guidewire through right atrium and into the IVC while avoiding common snags such as the tricuspid valve or simulated hepatic veins, dilate, and advance an HD, CVC, or ECMO catheter over the wire to confirm proper placement and demonstrate flow on an active circuit. Sutures can also be placed after catheter removal for closure practice, and included soap can be used as a lubricant for catheters with a rougher surface.

Procedures This Module Supports:

Hemodialysis (HD) catheter placement via the Seldinger technique
Central venous catheter (CVC) placement via the Seldinger technique
Ultrasound guided needle access
Post-removal suturing practice
Dilation of the internal jugular vein and carotid artery with 500-201 or 501-301
ECMO catheter/cannula placement via the Seldinger technique
Guidewire navigation with either of the above and 500-702 (COMING SOON)
Dual-site ECMO VA/VV cannulation

Key Features:

Clear construction for direct visualization of the internal jugular vein and carotid artery
Anatomy sized to a late adolescent or small adult
Supports the Seldinger technique (wire-guided, ultrasound-guided) for HD, CVC, and ECMO catheter placement
Jugular vein accepts cannulas up to 24 French maximum; carotid artery accepts cannulas up to 16 French maximum
Vessels rated for 5 to 10 cannulations depending on device size and technique; tissue rated for 20+ uses
Vessels are independently replaceable (see the Ultrasound Internal Jugular Vessel Replacement, 599-50-3, and the Ultrasound Carotid Vessel Replacement, 599-50-4)

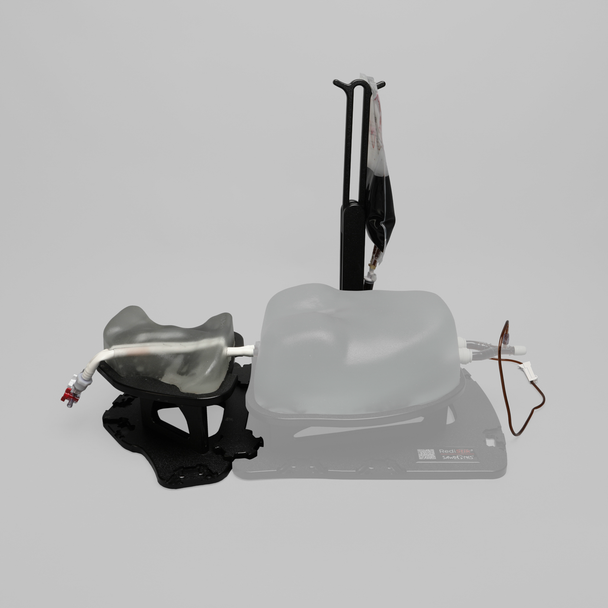

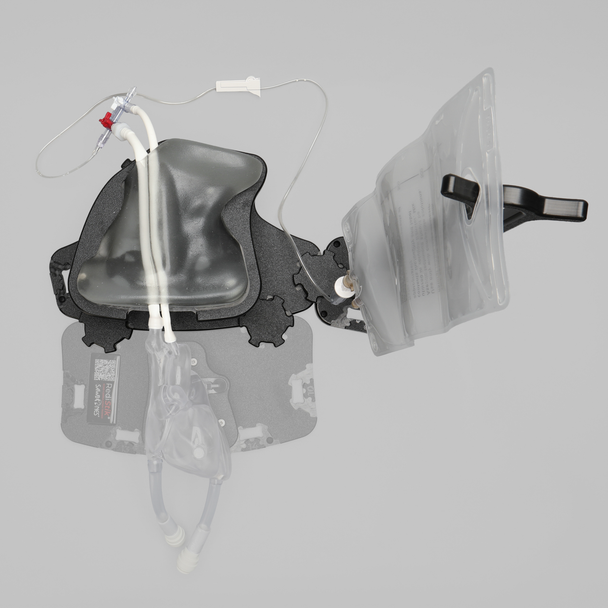

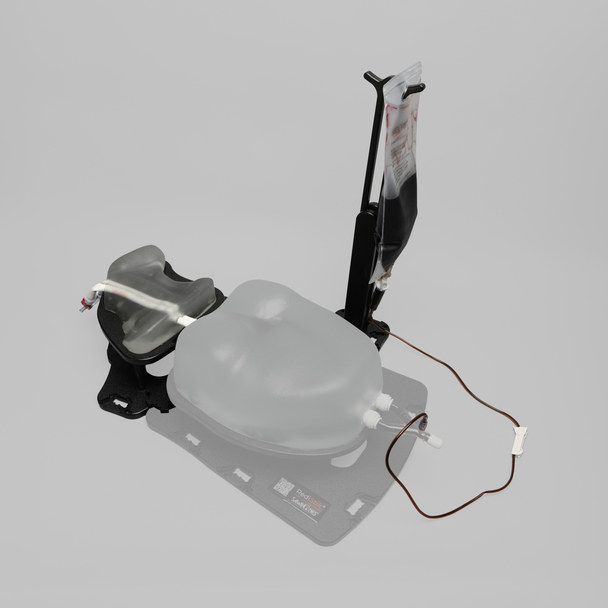

Locks onto the Ultrasound Right Heart Chamber and Valve Visualization Module (500-201-30/32) or the Clear Heart Visualization Module (501-301) for single- or dual-site ECMO simulation

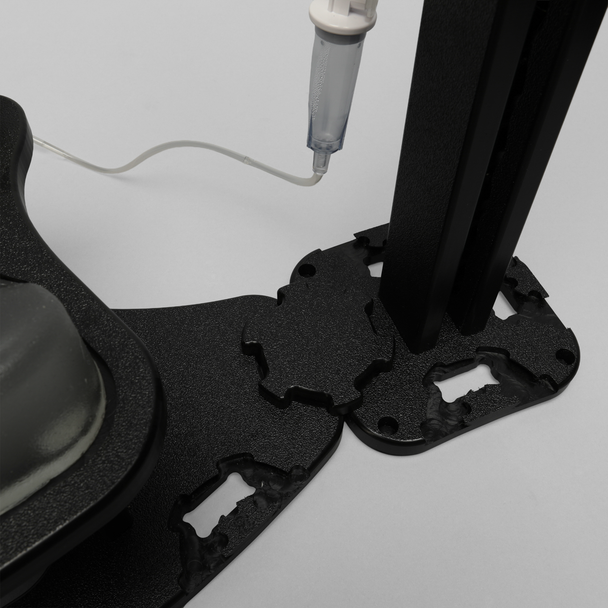

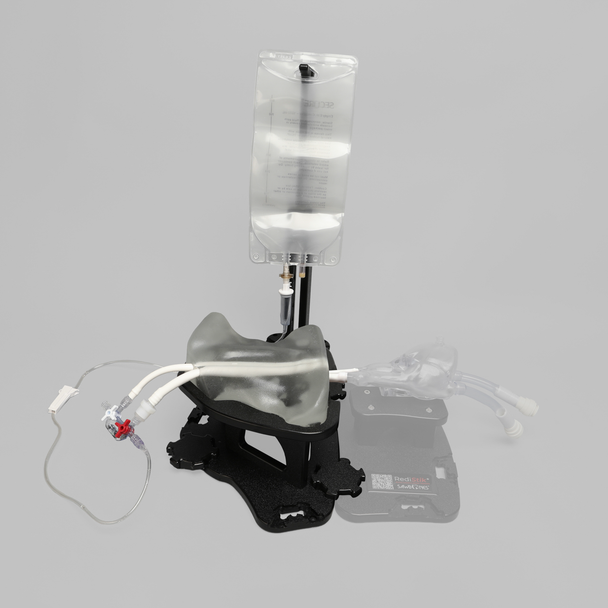

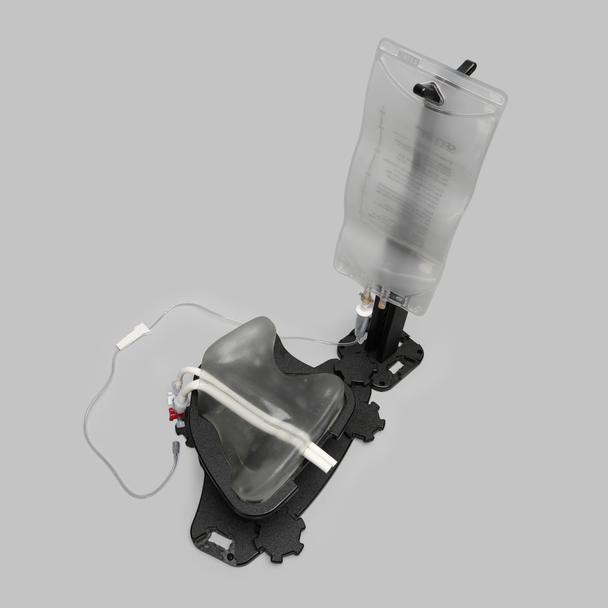

Manifolds allow priming with a 1,000 mL blood solution bag and height-adjustable IV tower
Supports guidewire navigation, catheter placement, and post-removal suturing practice
Can be used standalone for HD catheterization or under ultrasound guidance
Includes soap for use as a catheter lubricant
Self-healing Resonance™ tissue supports repeated cannulation when devices are removed promptly after each session

Videos

Specifications

SKU	500-301-30
Anatomy	Head and Neck
Model Type	Vascular Access
Material	Ultrasound
Orientation	Left
Size	Small
Country of Manufacture	USA
Overall Dimensions	21.5 x 11.5 x 11
