Description
The Ultrasound Internal Jugular and Carotid Cannulation Module, Medium Tone (500-301-32) is a central line training neck module used to place hemodialysis (HD) catheters, central venous catheters (CVC), and ECMO catheters via the Seldinger technique, a wire-guided approach performed under ultrasound, sized to the anatomy of a late adolescent or small adult. Part of the RediStik® line of cannulation models, its opaque, flesh-toned construction obscures the internal jugular vein and carotid artery, requiring users to rely on ultrasound guidance to locate and access each vessel, just as they would in clinical practice. The jugular vein accepts cannulas up to 24 French and the carotid artery up to 16 French without any need for dilation or incision. Vessels are rated for 5 to 10 cannulations at maximum device size depending on technique, with the surrounding tissue good for 20 or more uses; both vessels are easily replaced once worn.

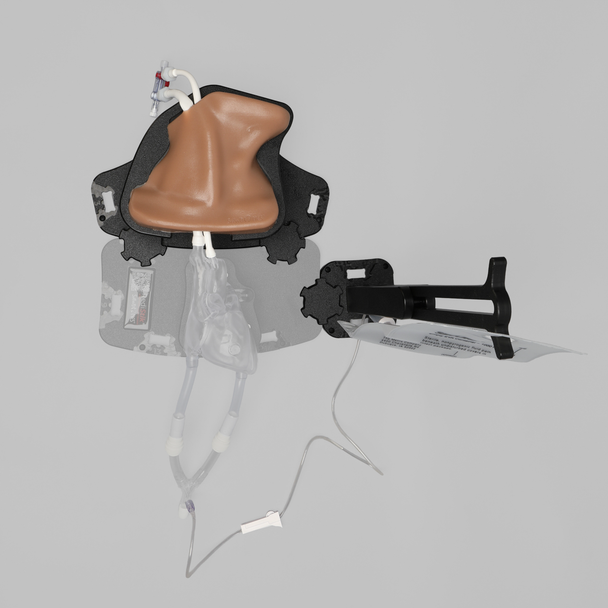

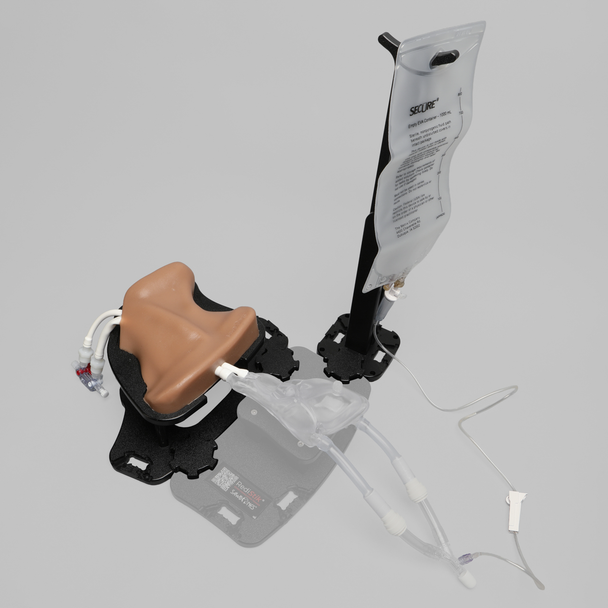

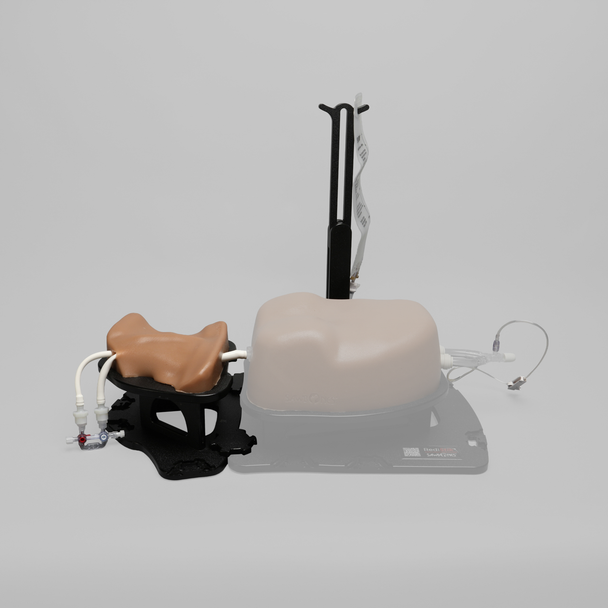

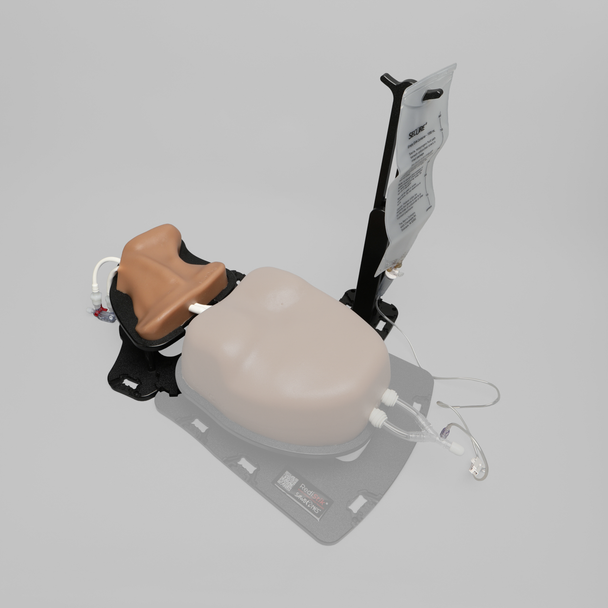

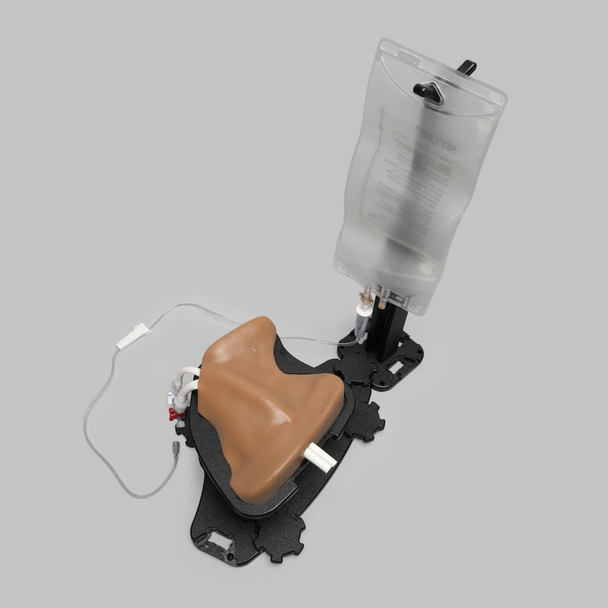

This module doubles as a standalone trainer for vessel location, needle insertion, HD catheterization, and short catheter access, or it can be expanded into a full ECMO circuit: a quick-turn rotational base lets it lock directly onto the Ultrasound Right Heart Chamber and Valve Visualization Module (500-201-30/32) or the Clear Heart Visualization Module (501-301), supporting single- or dual-site ECMO configurations (VV, VA, and other combinations) and giving users the choice between ultrasound-guided or purely visual training tracks. A proximal manifold and distal Y-shaped manifold complete the circuit and allow priming with a 1,000 mL bag of blood solution and a height-adjustable IV tower, so instructors can control flashback and back pressure at the moment of venipuncture.
Once primed, users can perform the full Seldinger technique from start to finish: track a needle tip under ultrasound down to the jugular vein, puncture and confirm flashback, thread a guidewire through the model and into the right atrium while avoiding common snags such as the tricuspid valve or simulated hepatic veins, dilate, and advance an HD, CVC, or ECMO catheter over the wire to confirm proper placement and demonstrate flow on an active circuit. Sutures can also be placed after catheter removal for closure practice, and included soap can be used as a lubricant for catheters with a rougher surface.
Procedures This Module Supports:
- Hemodialysis (HD) catheter placement via the Seldinger technique
- Central venous catheter (CVC) placement via the Seldinger technique
- Ultrasound guided needle access
- Post-removal suturing practice
- Dilation of the internal jugular vein and carotid artery with 500-201 or 501-301
- ECMO catheter/cannula placement via the Seldinger technique
- Guidewire navigation with either of the above and 500-702 (COMING SOON)
- Dual-site ECMO VA/VV cannulation
Key Features:
- Opaque, flesh-toned design that hides anatomy for realistic ultrasound-guided access
- Anatomy sized to a late adolescent or small adult
- Supports the Seldinger technique (wire-guided, ultrasound-guided) for HD, CVC, and ECMO catheter placement
- Jugular vein accepts cannulas up to 24 French maximum; carotid artery accepts cannulas up to 16 French maximum
- Vessels rated for 5 to 10 cannulations depending on device size and technique; tissue rated for 20+ uses
- Vessels are independently replaceable (see the Ultrasound Internal Jugular Vessel Replacement, 599-50-3, and the Ultrasound Carotid Vessel Replacement, 599-50-4)
- Locks onto the Ultrasound Right Heart Chamber and Valve Visualization Module (500-201-30/32) or the Clear Heart Visualization Module (501-301) for single- or dual-site ECMO circuits
- Manifolds allow priming with a 1,000 mL blood solution bag and height adjustable IV tower
- Supports guidewire navigation, catheter placement, and post-removal suturing practice

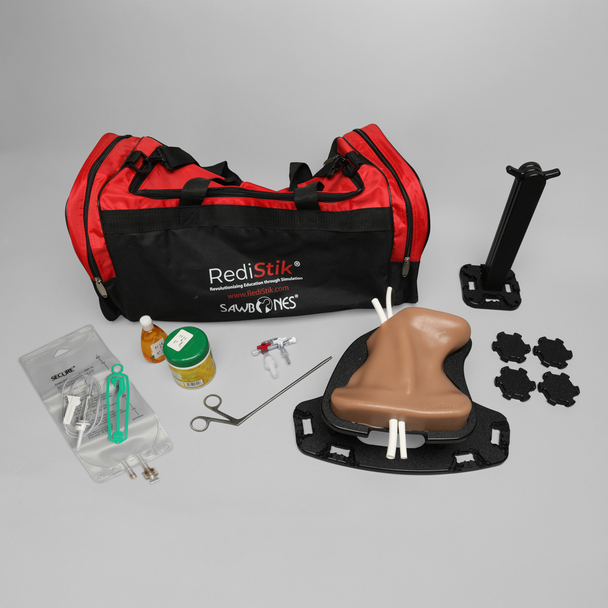

- Includes soap for use as a catheter lubricant
- Self-healing Resonance™ tissue supports repeated cannulation when devices are removed promptly after each session
Comparison of needle tracking between competing material and Resonance™:
Videos
-
Sawbones Cannulation Trainer Setup: 500-301-30/32 & 501-301 Combination Model Overview
See the Sawbones Ultrasound IJV & Carotid Cannulation Module p...
-
Sawbones Cannulation Trainer Setup: 500-301-30/32 & 501-201-30/32 Combination Model Overview
See the Sawbones Ultrasound IJV & Carotid Cannulation Module p...
Specifications
SKU |
500-301-32 |
Anatomy |
Head and Neck |
Model Type |
Vascular Access |
Material |
Ultrasound |
Orientation |
Left |
Size |
Small |
Country of Manufacture |
USA |
Overall Dimensions |
21.5 x 11.5 x 11 |
