Description

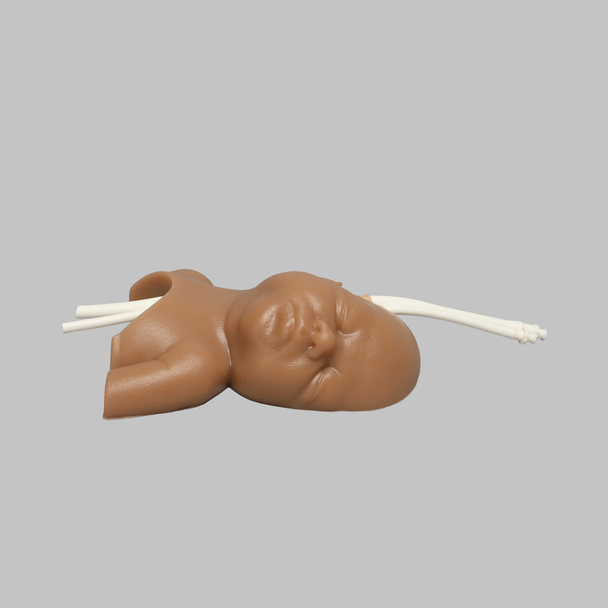

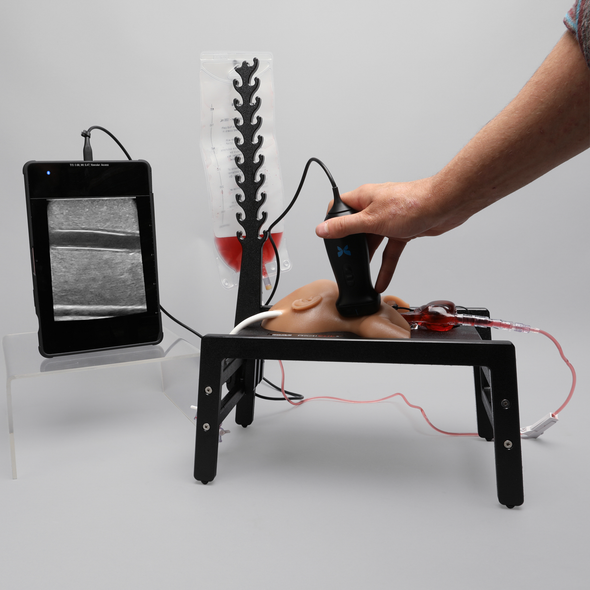

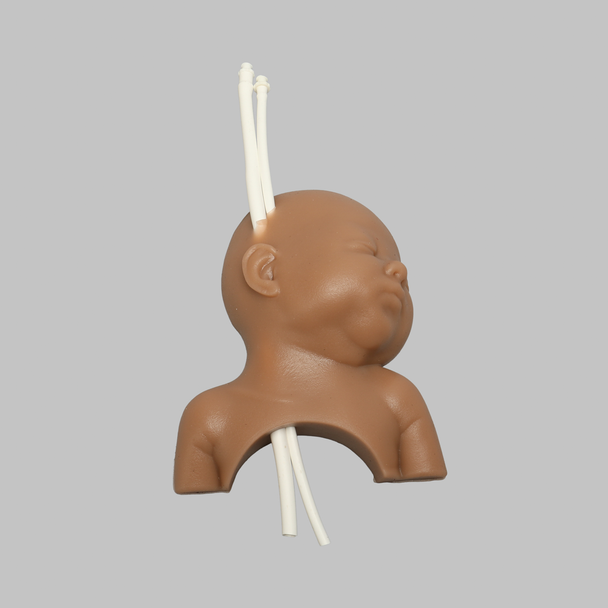

The Ultrasound Neonatal Internal Jugular and Carotid Cannulation Replacement, Medium Tone (525-303-32) is a replacement head and neck tissue with included vessels for the Ultrasound Neonatal Internal Jugular and Carotid Cannulation Kit, Medium Tone (500-303-32), restoring both the internal jugular vein (the larger vessel) and carotid artery (the smaller vessel) in opaque, neonatal-scale, flesh-toned tissue for continued neonatal hemodialysis (HD) catheter, central venous catheter (CVC), and ECMO catheter placement via the Seldinger technique (wire-guided, ultrasound-guided access). As vessels and surrounding tissue wear from repeated cannulation, typically after 15 to 20 cannulations on the original unit, this replacement lets users refresh the entire assembly and get back to realistic, ultrasound-guided training without purchasing a new module. Vessels install onto the model's base assembly by sliding each one over a barbed connector; and then using the provided forceps and lubricating soap to pull them through the tissue.
Key Features:
- Drop-in replacement for the Ultrasound Neonatal Internal Jugular and Carotid Cannulation Kit, Medium Tone (500-303-32)
- Includes both the internal jugular vein and carotid artery
- Opaque, neonatal-scale, flesh-toned construction for realistic ultrasound-only training
- Supports the Seldinger technique (wire-guided, ultrasound-guided) for neonatal HD, CVC, and ECMO catheter placement
- Installs with the provided forceps and a lubricant such as baby soap, sliding each vessel over a barbed connector
- Self-healing Resonance™ tissue supports repeated cannulation with minimal leaking at access sites
- Restores full neonatal HD, CVC, and ECMO catheter placement training life to the parent module
- Rinse under water and dry fully before storage to keep the closed fluid system clean between uses
Specifications
SKU |
525-303-32 |
Anatomy |
Head and Neck |
Model Type |
Vascular Access |
Material |
Ultrasound |
Size |
Pediatric |
Country of Manufacture |
USA |
Overall Dimensions |
12 x 8 x 2.75 |
Warranty
Care, Handling, Usage, and Storage Guidelines for Resonance™ Material
Resonance™ material is designed for durability and repeated training use when handled, used, stored, and maintained according to recommended guidelines. To help preserve product performance and maintain warranty coverage, follow the care, handling, usage, and storage instructions below.
Care and Handling
Handle Resonance™ material with care during setup, training, cleaning, and storage. Avoid placing unnecessary stress, weight, or pressure on the material, as this may deform or damage the product. Do not leave the material in contact with paper or other surfaces that may transfer ink, dye, or residue.
After use, clean the material according to the product’s recommended care instructions. Resonance™ material must be stored clean and dry when not in use.
Usage Guidelines
Use Resonance™ material only as intended and according to the instructions provided for the specific product. When needle access is required, use only the recommended needle sizes listed in each product’s description. Use of non-approved needle sizes may damage the material and reduce product performance.
Where lubrication is recommended, apply the appropriate lubrication before use. Using the material without recommended lubrication may result in unnecessary wear or damage.
Do not leave needles, devices, or other instruments in place for extended periods unless specifically instructed, as prolonged contact may affect material performance or cause damage.
Storage Guidelines
Store Resonance™ material clean and dry when not in use. Do not store the material while wet, soiled, compressed, or under any weight. Proper storage helps maintain the shape, function, and longevity of the product.
Avoid storage conditions that may expose the material to unnecessary pressure, contamination, moisture, direct sunlight, or contact with materials that could stain or damage the surface.
Warranty Coverage
Damage resulting from use, storage, or care outside of these recommendations is not covered under warranty. This includes, but is not limited to, use with non-approved needle sizes, leaving the material in contact with paper, storing the material under any weight, storing the material while wet or soiled, leaving devices in place for extended periods, or using the material without recommended lubrication where applicable.
Failure to follow care, handling, storage, and usage instructions may reduce product performance and void warranty coverage.
See our Policies page for additional information.
