Description

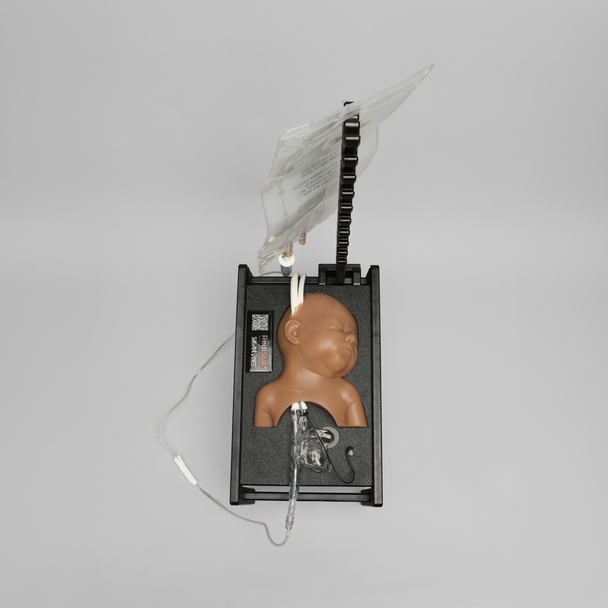

The Ultrasound Neonatal Internal Jugular and Carotid Cannulation Module, Medium Tone (500-303-32) is a neonatal central line training module used to place hemodialysis (HD) catheters, central venous catheters (CVC), and ECMO catheters in neonatal patients via the Seldinger technique, a wire-guided approach performed under ultrasound. Part of the RediStik® line of cannulation models, its opaque, flesh-toned construction obscures the internal jugular vein (the larger of the two provided vessels) and carotid artery (the smaller vessel), requiring users to rely on ultrasound guidance to locate and access each vessel in a neonatal patient. The jugular vein accepts cannulas up to 10 French maximum and the carotid artery up to 8 French maximum; vessels are rated for at least 5 cannulations at maximum size, and the unit has been validated for 15 to 20 solid cannulations overall, with the surrounding tissue good for 20 or more uses.

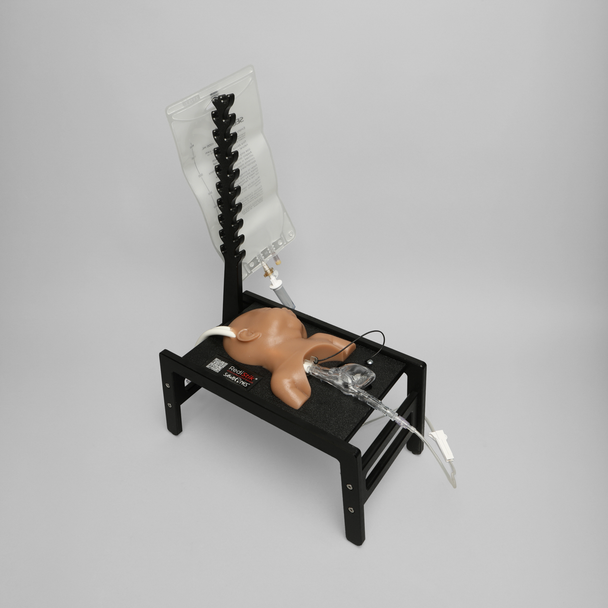

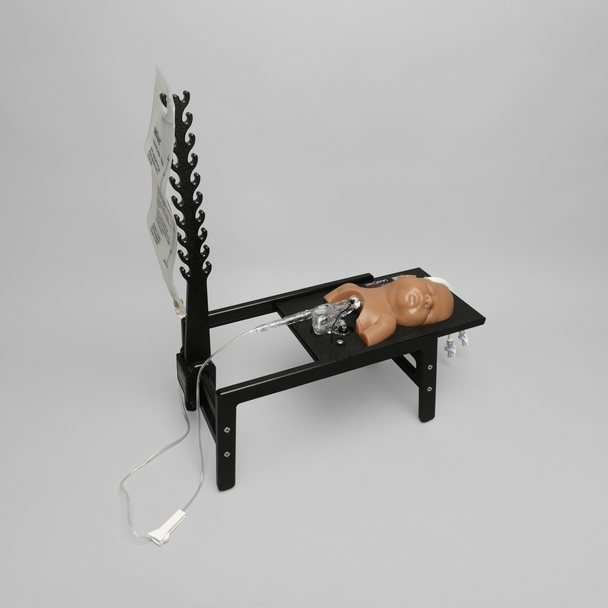

Vessels install onto the model's base assembly using the provided forceps and baby soap as a lubricant, sliding each one over a barbed connector; the same technique is used to install the Ultrasound Neonatal Internal Jugular Vessel Replacement (599-50-1) and Ultrasound Neonatal Carotid Vessel Replacement (599-50-2) when it's time to refresh the module. The kit's base assembly includes a removable tabletop mount, height-adjustable legs, and a three-prong IV tower, and the neck connects to a clear neonatal heart component via a threaded thumb screw for a complete, air-primeable ECMO circuit. Stopcocks and a 1,000 mL blood solution bag let users fully prime both vessels and the heart chambers before scanning, which is essential for clear ultrasound imaging free of air artifact.

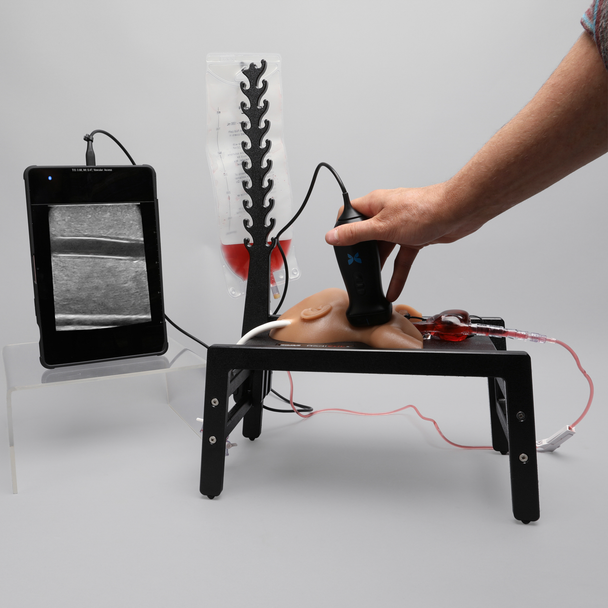

Once primed, users can perform the full Seldinger technique from start to finish: scan for the jugular vein under ultrasound, puncture and confirm flashback, thread a guidewire down through the vessel and toward the heart, dilate, and advance an HD, CVC, or ECMO catheter over the wire to complete a full cannulation connected to an active ECMO circuit. Needle tracks may appear with repeated use, but the self-healing Resonance™ tissue shows little to no leaking even at the same access site after many sticks. After each session, the circuit drains back into the IV bag through the stopcocks, and the vessels and connecting tubing should be flushed under water and fully dried before storage to prevent moisture buildup in the closed system.
Procedures This Module Supports:
- Neonatal hemodialysis (HD) catheter placement via the Seldinger technique
- Neonatal central venous catheter (CVC) placement via the Seldinger technique
- Neonatal ECMO catheter/cannula placement via the Seldinger technique
- Wire-guided, ultrasound-guided needle puncture, guidewire navigation, and dilation of the internal jugular vein and carotid artery
- Single- or dual-site neonatal ECMO cannulation (VV, VA, and other combinations) when paired with a compatible chest or heart module
Key Features:
- Opaque, flesh-toned design that hides anatomy for realistic ultrasound-guided access
- Neonatal-scale anatomy for realistic small-vessel cannulation practice
- Supports the Seldinger technique (wire-guided, ultrasound-guided) for neonatal HD, CVC, and ECMO catheter placement
- Jugular vein (larger vessel) accepts cannulas up to 10 French maximum; carotid artery (smaller vessel) accepts cannulas up to 8 French maximum
- Vessels rated for at least 5 cannulations at maximum cannula size; unit validated for 15 to 20 solid cannulations, with tissue rated for 20+ uses overall
- Self-healing Resonance™ tissue shows little to no leaking at repeated needle-track sites
- Connects to a clear neonatal heart component via a threaded base assembly for a complete, air-primeable ECMO circuit
- Base assembly includes a removable tabletop mount, height-adjustable legs, and a three-prong IV tower for priming
- Vessels are independently replaceable using forceps and lubricant (Ultrasound Neonatal Internal Jugular Vessel Replacement, 599-50-1; Ultrasound Neonatal Carotid Vessel Replacement, 599-50-2); full assembly replaceable with the Ultrasound Neonatal Internal Jugular and Carotid Cannulation Replacement, Medium Tone (525-303-32)
- Rinse under water and dry fully before storage to keep the closed fluid system clean between uses
Specifications
SKU |
500-303-32 |
Anatomy |
Head and Neck |
Model Type |
Neonatal |
Material |
Ultrasound |
Size |
Pediatric |
Country of Manufacture |
USA |
Overall Dimensions |
21.5 x 11.5 x 11 |
Warranty
Care, Handling, Usage, and Storage Guidelines for Resonance™ Material
Resonance™ material is designed for durability and repeated training use when handled, used, stored, and maintained according to recommended guidelines. To help preserve product performance and maintain warranty coverage, follow the care, handling, usage, and storage instructions below.
Care and Handling
Handle Resonance™ material with care during setup, training, cleaning, and storage. Avoid placing unnecessary stress, weight, or pressure on the material, as this may deform or damage the product. Do not leave the material in contact with paper or other surfaces that may transfer ink, dye, or residue.
After use, clean the material according to the product’s recommended care instructions. Resonance™ material must be stored clean and dry when not in use.
Usage Guidelines
Use Resonance™ material only as intended and according to the instructions provided for the specific product. When needle access is required, use only the recommended needle sizes listed in each product’s description. Use of non-approved needle sizes may damage the material and reduce product performance.
Where lubrication is recommended, apply the appropriate lubrication before use. Using the material without recommended lubrication may result in unnecessary wear or damage.
Do not leave needles, devices, or other instruments in place for extended periods unless specifically instructed, as prolonged contact may affect material performance or cause damage.
Storage Guidelines
Store Resonance™ material clean and dry when not in use. Do not store the material while wet, soiled, compressed, or under any weight. Proper storage helps maintain the shape, function, and longevity of the product.
Avoid storage conditions that may expose the material to unnecessary pressure, contamination, moisture, direct sunlight, or contact with materials that could stain or damage the surface.
Warranty Coverage
Damage resulting from use, storage, or care outside of these recommendations is not covered under warranty. This includes, but is not limited to, use with non-approved needle sizes, leaving the material in contact with paper, storing the material under any weight, storing the material while wet or soiled, leaving devices in place for extended periods, or using the material without recommended lubrication where applicable.
Failure to follow care, handling, storage, and usage instructions may reduce product performance and void warranty coverage.
